Barite – Barytine – Barita – Barium

Industrial Mineral

Barite is an extraordinary natural weighting agent in drilling muds, it has proven to be a valuable asset industry-wide due to its numerous use and heavy specific density. Barite is largely composed of the mineral Barium – BaSo4 .

SMBM sources and processes, large quantities of Barite, different grades are selected by our laboratory teams, with a special focus on quality.

Due to its heavy density and structure, Barite is now a standard use in different industries. It covers Energy, Construction, Medical and Automotive.

Ba

BaSo4



Gravity Separation Processing

Barite is upgraded in our facility using gravity separation, an environemental friendly process, the average production grades are 4.10 to 4.30 gr/cm3. The size is generally 0-10mm, color is from White to off-white and yellowish. The crushing stages are carried out by a vertical impact crusher with a capacity of 50 tph. Different grades are produced and tested by our laboratory teams, with a special focus on quality.


Slide 1

certified quality

Jigged Barite

90% BaSo4 concentrate, having a specific gravity of minimum 4.20 gr/cm3 – size 10mm

specs

Slide 2

BULK OR BIG BAG AS PER ORDER

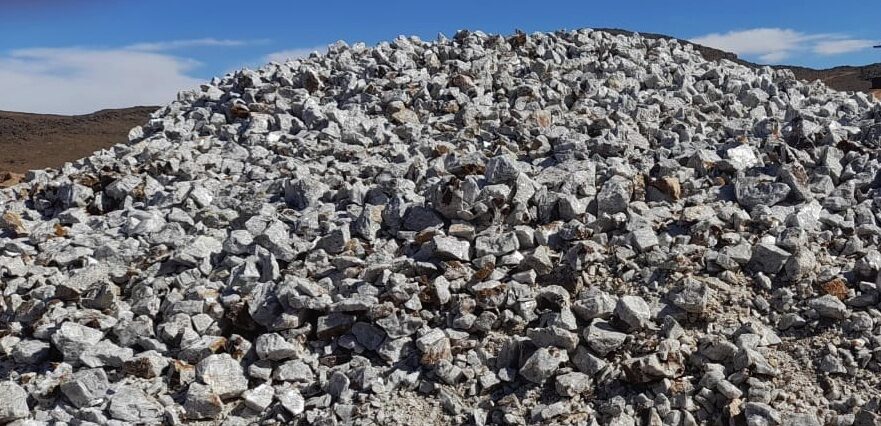

Barite Stockpile

Barite testing before delivery to the clients.
Lab tests done by 3rd party Quality Certification Agencies SGS

Learn More

Slide 3

Logistics

A Full Process, From Start to Finish

Covered warehouse plant and open storage area for Barite Stocking, Quality Control and Analysis.

Learn More

Slide 4

Logistics

A Full Process, From Start to Finish

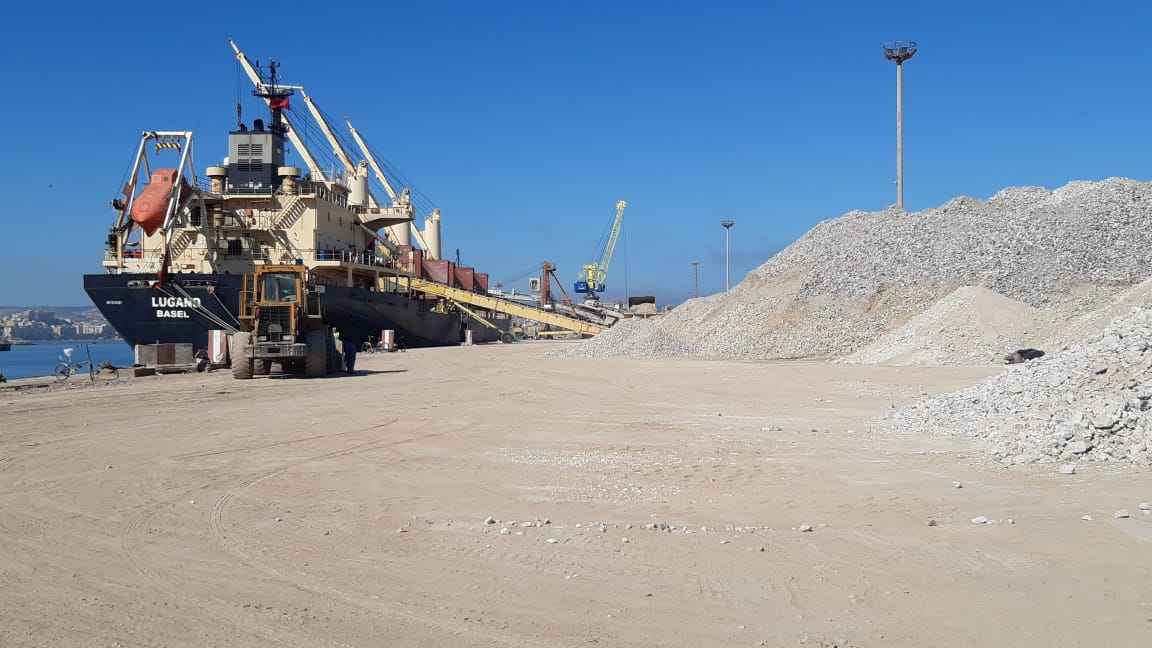

Vessel Loading

Learn More

Our Product Offerings

With an annual production of more than 1000 KT of raw Barite Morocco is in the 4th rank of the top porducers. The new strategy of the government is to develop the transformation and benefication units in order to incresase valueadded to the export offer and develop an ecosystem arraound this industry. By 2017 Our company launched it’s first Barite facilty and start processing these minerals, SMBM supplies a wide range of Barite, giving solutions to industry leaders worldwide. The barite offerings covers diffenrent fields : Oil-gas, Construction, Medical and Automotive.

BaSo4 90%

4.20 SG graded Barite Lumps. The purity can be expected with a minimum of 90% BaSo4 concentrate having a specific gravity of minimum 4.20 gr/cm3. This quality can also be jigged as 10mm size barite.

Specs

Grade – 4.20 gr/cm3

It consists of a minimum 90% BaSo4 concentration with a minimum specific gravity of 4.20gr/cm3

Download Pdf

SG	4.20 gr/cm3 min (4.22 – 4.25 also available		Water Alkaline Earth Metals as Calcium	250 ppm max
BaSo4	90% min		Moisture	1.00% max
Extr Carb	3000 mg/l max		Lump Size	0 to 10 mm
Hg	1.00 ppm max		Iron	<1% max
Cd	3.00 ppm max		As	40.00 ppm max
Pb	1.00 ppm max		Color	Off White, White, Yellow, Grey

4.10 SG

This grade of Barite Lumps, can also be jigged for a size of 10mm. It consists of a minimum 80 – 90% BaSo4 concentration with a minimum SG of 4.10 to 4.15 gr/cm3

Specs

Grade – 4.10 gr/cm3

It consists of a minimum 80% BaSo4 concentration with a minimum specific gravity of 4.10gr/cm3

Download Pdf

SG	4.10 gr/cm3 min (4.11 – 4.15 also available		Water Alkaline Earth Metals as Calcium	250 ppm max
BaSo4	80% min		Moisture	1.00% max
Extr Carb	3000 mg/l max		Lump Size	0 to 10 mm
Hg	1.00 ppm max		Iron	<1% max
Cd	3.00 ppm max		As	40.00 ppm max
Pb	1.00 ppm max		Color	Off White, White, Yellow, Grey

4.00 SG

The 4.0 SG graded Barite Lumps consists of 60 – 70% BaSo4 concentration with a minimum specific gravity 4.0 gr/cm3.

Barite mine landscape

Barite Mine Landscape

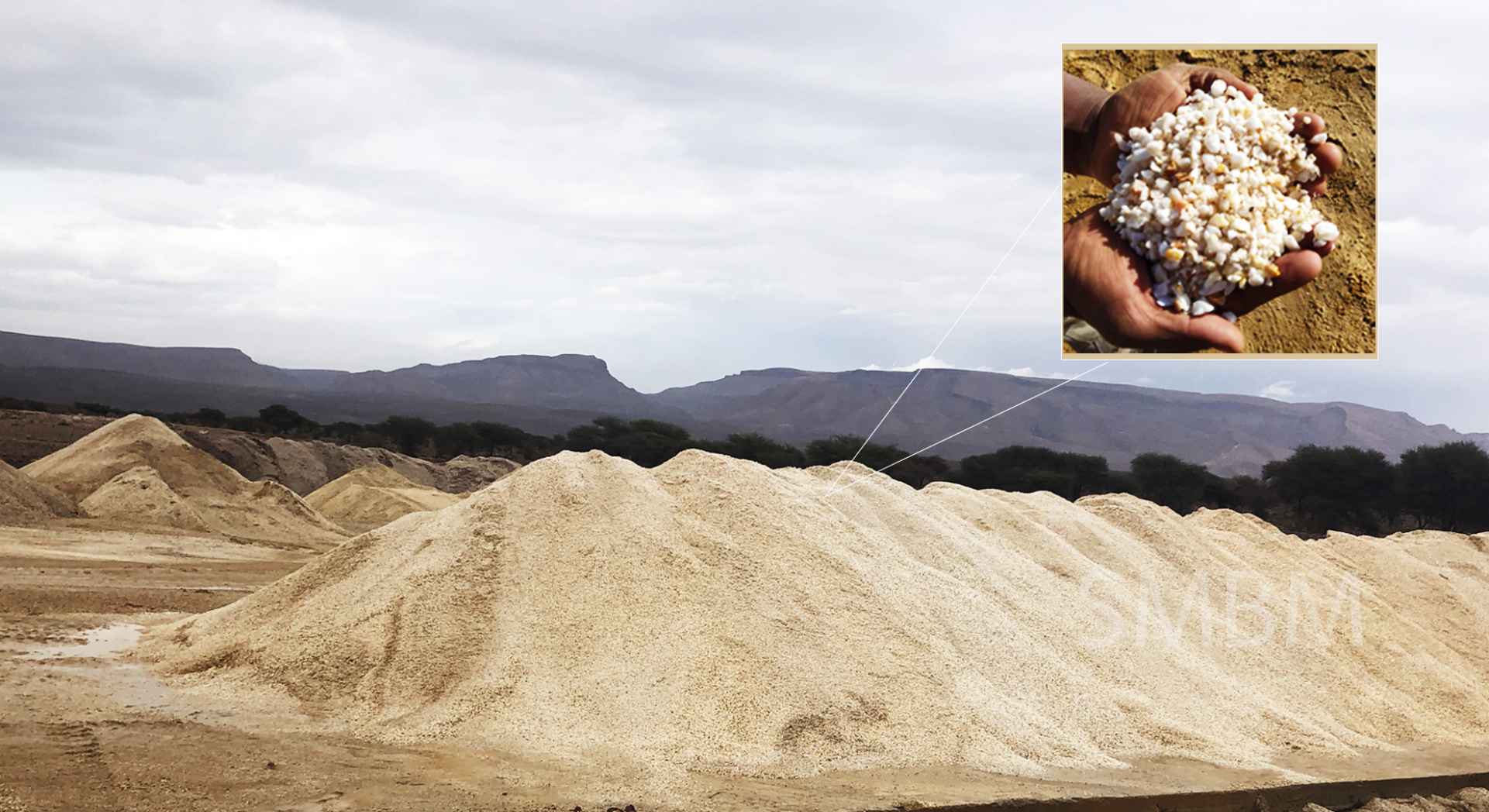

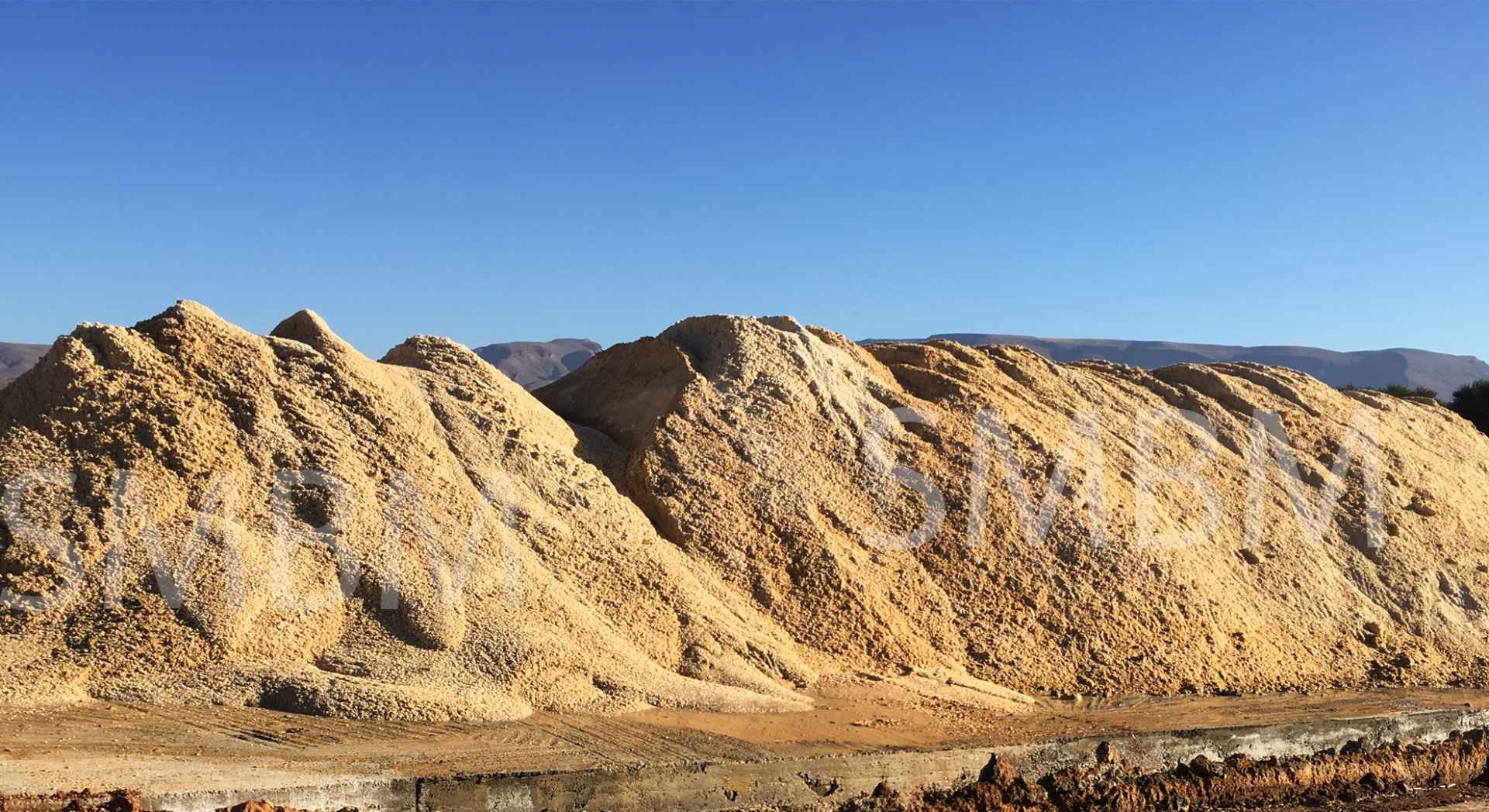

Jigged Barite stockpile

Jigged Barite stockpile

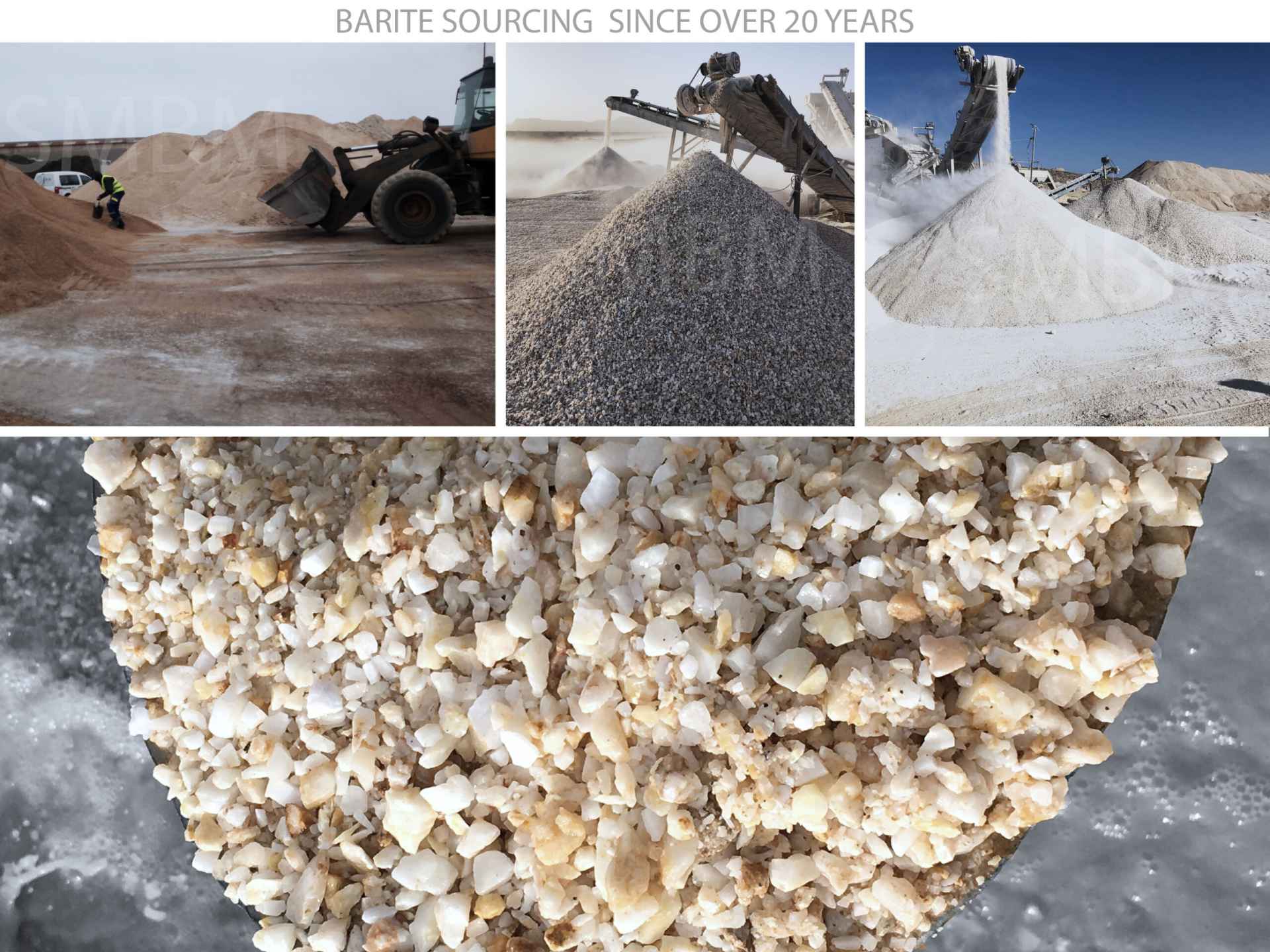

Crushing jigging Plant

Barite crushing plant installation

Barite extraction

Jigged Barite

Barite mine landscape

Barite mine Landscape

Massive Barite Vein

Barite vein

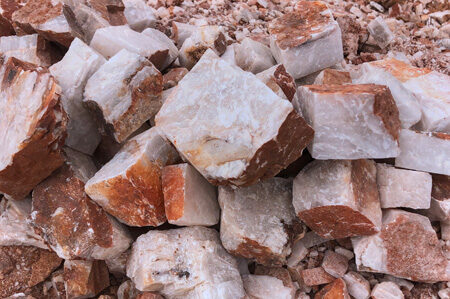

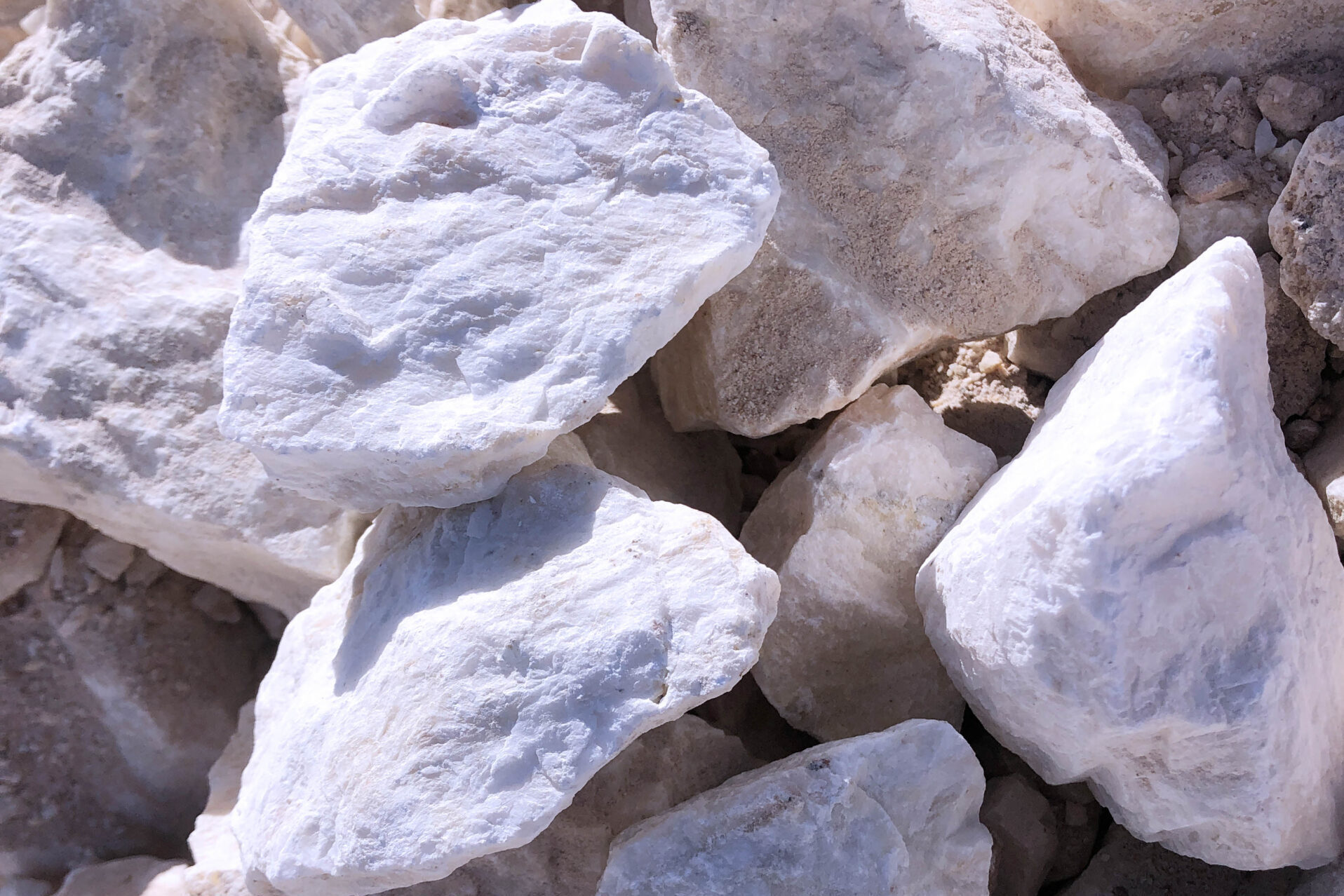

White Barite >90% BaSo4

White Barite >90% BaSo4

SGS Lab inspecting

Certified Lab SGS inspecting before shippement
